omniPAGE Vertical Gel Electrophoresis Systems
Overview:

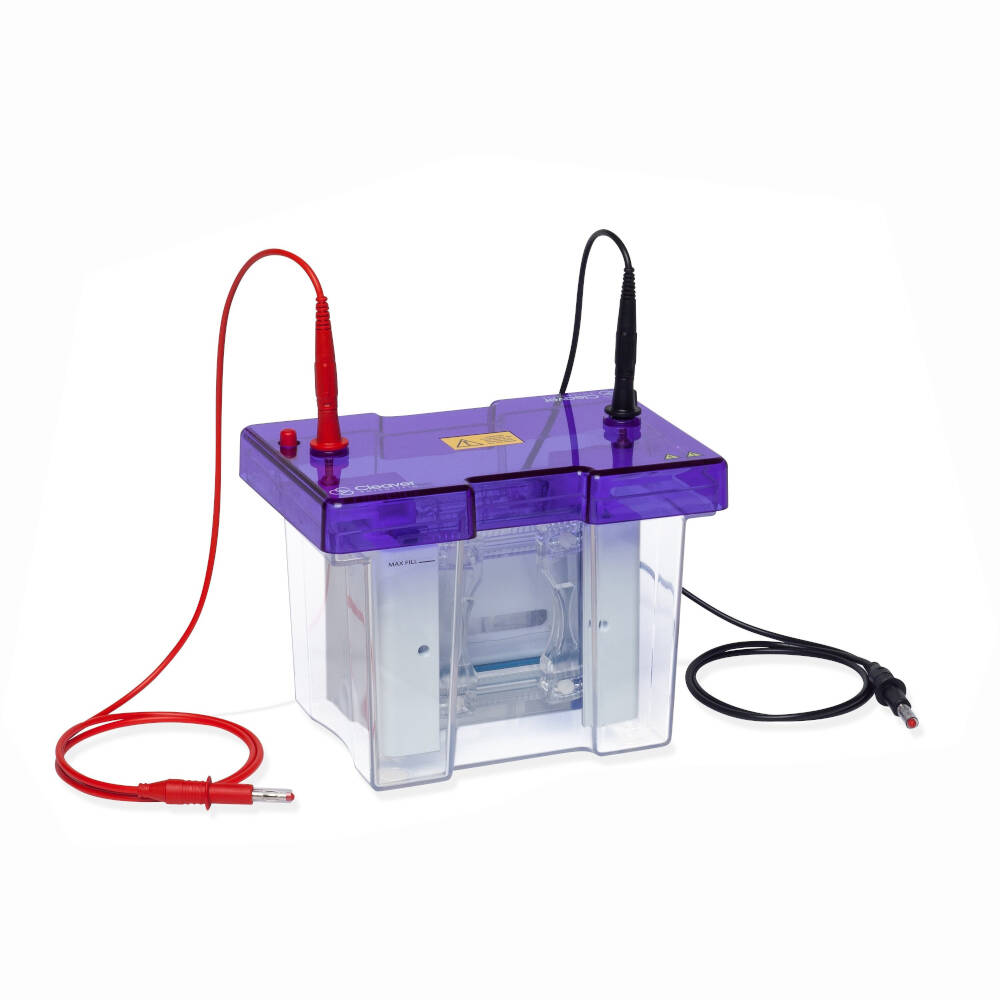

Cleaver Scientific Mini Vertical Gel Electrophoresis systems are predominantly used for protein electrophoresis.
By combining both functionality and ease of use, the omniPAGE systems set the bench mark for simple, versatile vertical mini gel electrophoresis. Each omniPAGE electrophoresis system can accommodate up to 4 handcast gels (additional plates required) or 2 commercial precast gels to provide complete flexibility for individual research needs, while unique sliding clamp technology within the PAGE insert facilitates fast, intuitive leak-free casting.
With a trouble-free set up and consistent performance, the omniPAGE Mini Vertical systems are perfect for today’s laboratories, where the ability to generate reproducible results quickly is essential.
- Run a maximum of 4 gels within an hour
- Perform 2-D and blotting within a day
- Undertake discovery projects
- Screen new samples and evaluate sample preparation conditions
Technical Specifications:
| SKU | CVS10D | CVS10DSYS | CVS10DSYS-CU | CVS10PRE |
| Unit Dimensions (cm) | 19 x 13 x 15 | 19 x 13 x 15 | 19 x 13 x 15 | 19 x 13 x 15 |
| Weight (Kg) | 1.8 | 1.8 | 1.8 | 1.8 |
| Capacity | 1 – 4 Gels | 1 – 4 Gels | 1 – 4 Gels | 1 – 4 Gels |
| Maximum Sample Capacity | 80 | 80 | 80 | 80 |
| Base Buffer Volume | 250 | 250 | 250 | 250 |
| Typical Running Conditions | 1-2 hours at 90-225V | 1-2 hours at 90-225V | 1-2 hours at 90-225V | 1-2 hours at 90-225V |
| Gel Dimensions | 8 x 8.5 | 8 x 8.5 | 8 x 8.5 | 8 x 8.5 |
| Maximum Buffer Volume (ml) | 1200 | 1200 | 1200 | 1200 |

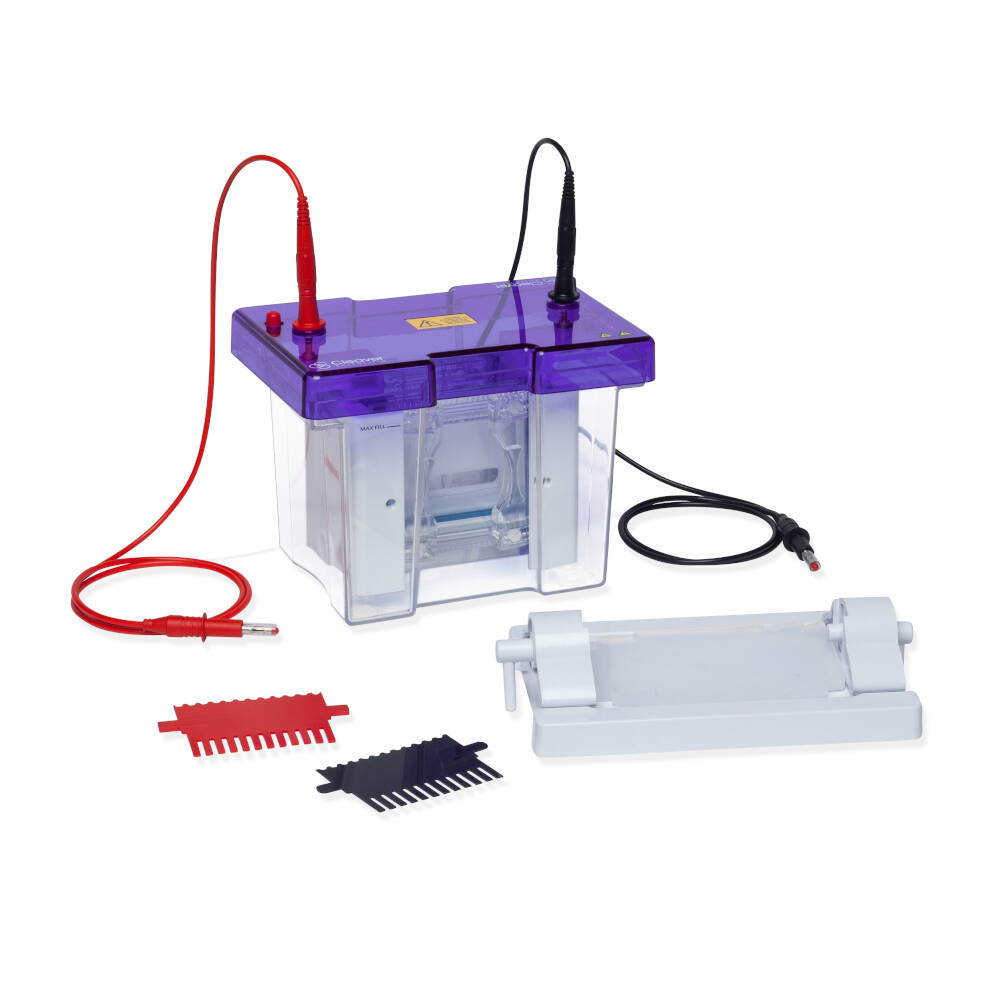

| Includes Casting Base | FALSE | TRUE | TRUE | FALSE |
| Blotting Insert (optional) | VS10BI | VS10BI | VS10BI | VS10BI |
| 2D Insert (optional) | VS10DCI | VS10DCI | VS10DCI | VS10DCI |
| Includes Additional Caster | FALSE | FALSE | TRUE | FALSE |
| Plate Dimensions | 10 x 10 x 0.2 | 10 x 10 x 0.2 | 10 x 10 x 0.2 | 10 x 10 x 0.2 |
The omniPAGE MINI features injection moulded construction for leak proof running, and a simple clamp system to ensure a tight seal between buffer chambers to prevent current leakage. Featuring interchangeable modules including electroblotting module, high intensity electroblotting module and capillary IEF module.

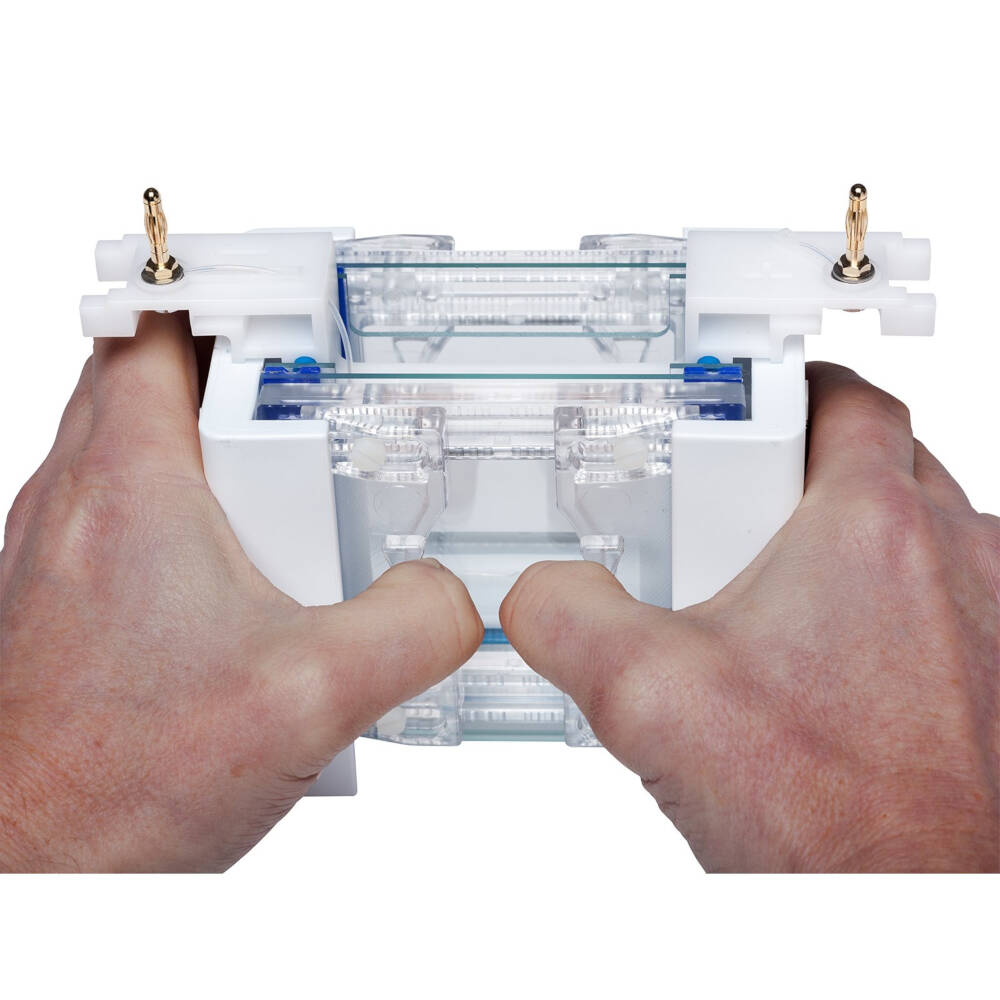

Gel casting and running is done using the same internal module, no transfer of glass plates during gel casting is necessary. The module also features unique sliding gates, which allow for a rapid set up of both hand cast and precast gels.

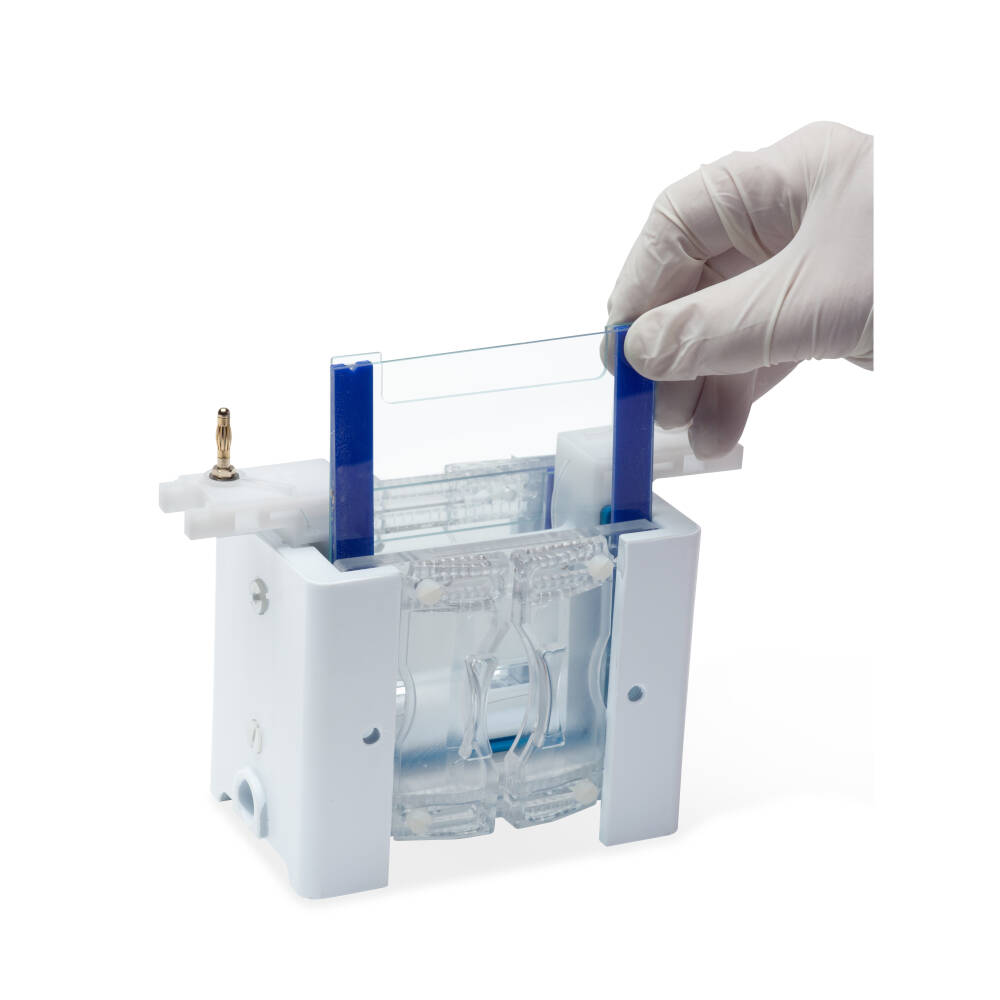

The ultra soft silicone seals and pressure bars which surround the glass plates guarantee leak proof gel casting. 2mm thick glass plates minimise breakage and have bonded spacers for convenience. key features include injection moulded construction, compatible with all 8 x 10 and 10 x 10cm precast gels, rapid gel casting and loading, low buffer volumes, rapid set up cooling, and can run up to four gels in tetrad model.
The Maxi WAVE system is designed to perform a variety of separations, including first and second dimension SDS-PAGE, native, preparative, gradient and high resolution nucleic acid electrophoresis, plus capillary tube gel IEF and electroblotting, the Maxi WAVE is one of the most versatile maxi vertical systems available.
The omniPAGE Maxi WAVE is able to run up to four gels simultaneously and only requires four screws to secure glass plates, significantly reducing set up time. Featuring a detachable inner cooling coil facilitates rapid and uniform, smile-free electrophoresis, even at a higher voltages. Injection moulded construction guarantees long life with reliable and consistent performance.
Check out our other products in this series…Vertical Gel Electrophoresis OmniPAGE WAVE Maxi
