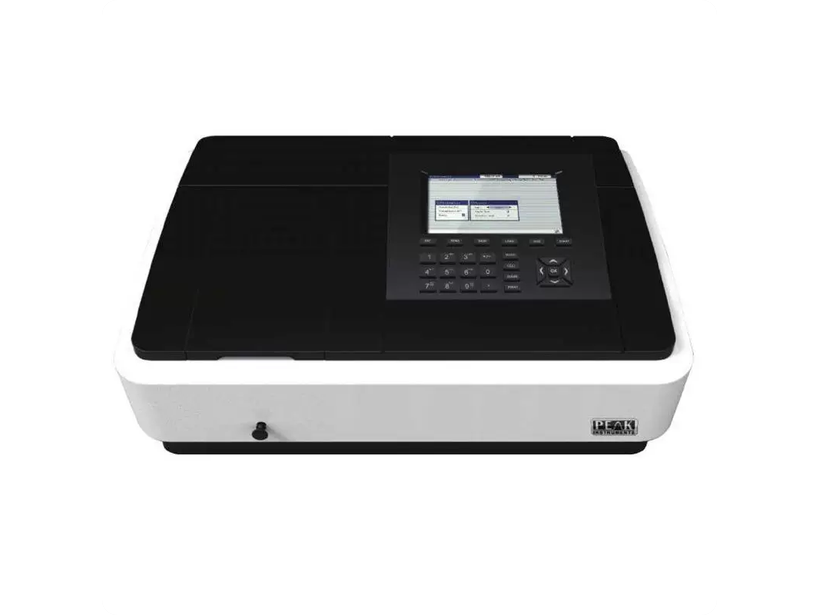

X-8200 Series Double Beam Spectrophotometer

The **X-8200 Series Spectrophotometer** from PEAK Instruments is a professional UV-Vis spectrophotometer series designed for accurate and repeatable laboratory analysis. Covering a broad wavelength range of **190–1100 nm**, the series supports ultraviolet, visible and near-infrared measurements for a wide range of analytical applications.

The X-8200 family uses a **double-beam optical system** with a high-efficiency holographic grating of **1200 lines/mm**, a xenon light source and a sensitive silicon photodiode detector. These features provide a stable optical platform for absorbance, transmittance, concentration and energy measurements.

The series is suitable for laboratories involved in chemical analysis, pharmaceutical research, biotechnology, environmental testing, quality control, academic research and other analytical applications.

Key Features and Benefits

1. 7 inch TFT screen and long life, more comfortable and sensitive silicone buttons or capacitive touch screen. The instrument can show various scanning curves and charts for users to various tests without computers.

2. Support USB storage and different data formats such as Excel, txt and image(via PC software). Users can output test data to flash memory, open and edit them on computers directly without any auxiliary software.

3. Advanced hardware and 32-bit Cortex_M3 processor with the clock speed 120MHz. The equipment can store 5000 pieces of data and 500 curves.

4. High-efficiency holographic grating of 1200 lines/mm and low stray light.

5. The equipment has long-life socket type xenon lamp which can work up to 5 years. Socket type lamp make the replacement much easier.

6. Excellent silicon photodiode can guarantee the equipment is highly sensitive and stable.

7. Huge sample chamber and various accessories can meet all kinds of needs.

8. Can be connected to printer directly and output test charts and data.

9. Powerful PC software.

10. Standard RS232, USB(A) and USB(B) port for printer, data transfer and PC software.

X-8200 Series Double Beam Spectrophotometer Technical Specifications

X-8200 Series Double Beam Spectrophotometer Measurement Functions

The X-8200 series provides several measurement and analysis functions for routine and advanced laboratory work. Depending on the configuration, users can perform:

• Absorbance measurements
• Transmittance measurements
• Concentration measurements
• Energy measurements
• Standard curve and quantitative analysis
• Kinetic analysis
• Wavelength scanning
• Multi-wavelength measurements
• DNA and protein quantification

The standard-curve function can be used for quantitative analysis, while wavelength scanning provides a useful approach for examining the spectral characteristics of samples. Kinetic measurements can also be used to monitor reactions over time.

Models in the X-8200 Series

PEAK Instruments offers several configurations within the X-8200 family, including **X-8200, X-8200S, X-8200T and X-8200TS**.

The primary differences between configurations include the display/control arrangement and enclosure configuration. The standard X-8200 uses a 7-inch TFT display with silicone-button control, while touchscreen configurations provide capacitive touchscreen operation.

This model selection allows laboratories to choose an instrument configuration according to their preferred operating interface and workflow requirements.

Applications of the X-8200 Series Double Beam Spectrophotometer

The X-8200 series can be used in a variety of laboratory and analytical environments, including:

• Pharmaceutical research and quality control
• Chemical analysis
• Biotechnology and molecular biology
• DNA and protein analysis
• Environmental analysis
• Food and beverage testing
• Academic and university laboratories
• Industrial quality control
• Research and development laboratories

Its broad wavelength range and multiple measurement modes make the system suitable for laboratories performing both routine spectrophotometric measurements and more advanced analytical procedures.

Data Management and Connectivity

The X-8200 series provides USB-A, USB-B and RS232 connectivity for data transfer and external communication. Available documentation indicates that data can be exported through USB storage and handled using computer software, including formats such as Excel, text and image files.

The instrument can store up to **5000 data points and 500 curves**, helping users retain measurement results for later review and analysis.

Why Choose the X-8200 Series?

The X-8200 series combines a broad spectral range, double-beam optical architecture, xenon illumination and practical data-management functions in a laboratory benchtop platform.

For laboratories that need a versatile **UV-Vis spectrophotometer**, the series provides multiple analytical modes and configuration choices. Its 190–1100 nm wavelength coverage allows measurements across ultraviolet and visible regions, while the 1200 lines/mm holographic grating and silicon photodiode detector support reliable spectrophotometric measurements.

The availability of different display and control configurations also makes it possible to select a model that matches the laboratory’s preferred workflow.

FAQ Section

What is the X-8200 Series Double Beam Spectrophotometer?

The X-8200 Series is a professional double-beam UV-Vis spectrophotometer family from PEAK Instruments designed for laboratory spectrophotometric analysis.

What is the wavelength range of the X-8200?

The X-8200 series covers a wavelength range of 190–1100 nm, allowing analysis across the UV and visible spectral regions.

Is the X-8200 a double-beam spectrophotometer?

Yes. The X-8200 series uses a double-beam optical system with a 1200 lines/mm holographic grating.

What light source does the X-8200 use?

The series uses a socket-type xenon lamp as its light source. Available documentation describes the lamp as replaceable and designed for long service life.

What measurements can the X-8200 perform?

The instrument supports absorbance, transmittance, concentration and energy measurements, with additional functions such as wavelength scanning, kinetics, multi-wavelength analysis and DNA/protein quantification.

Which models are available in the X-8200 Series?

The documented series includes X-8200, X-8200S, X-8200T and X-8200TS.
