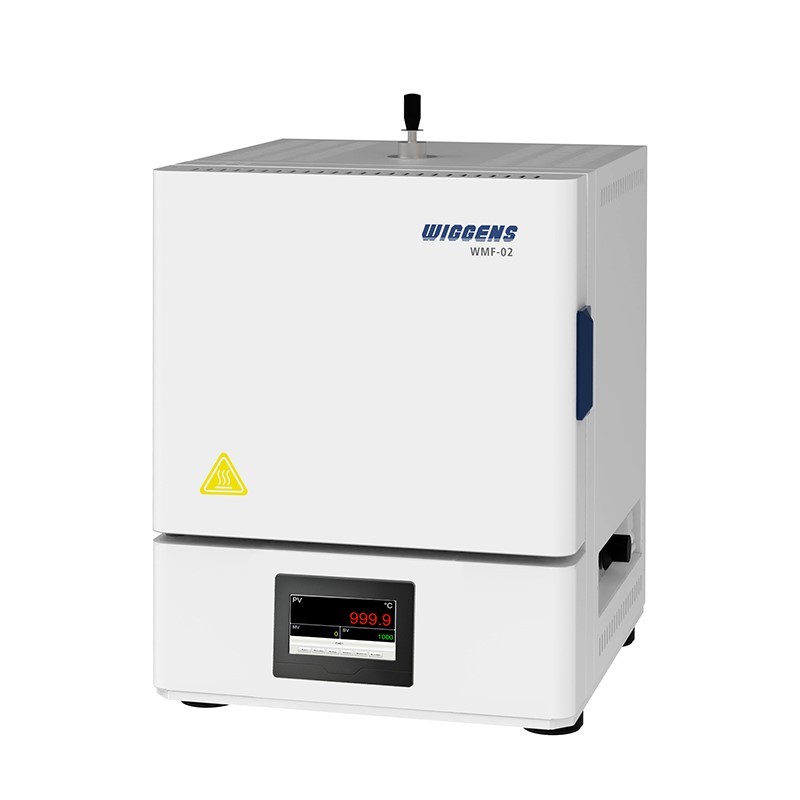

Laboratory Muffle Furnace
WMF-02 Muffle Furnace | WIGGENS Germany
Description
Operation and Display
> Intelligent navigation operation, can be directly access into the settings
> The main interface shows setting temperature, actual temperature, output power, historical data, alarm records and other information, convenient to enter the destination menu directly
Program
> Integrated temperature program, 10×30 steps
> Display the temperature curve in real-time
Data storage and connection
> Data storage, transfer, and invocation
> Experiment data and alarm information can be transfer by USB stick
> Communication interface included RS232, RS485, RJ45, can be remote controlled by PC and SCADA
Safety
> Overheat protection (Electronic and mechanical protection), Overload and leakage protection, Selfdiagnosis
> With password protection to prevent the process of setting parameters are changed
> Standard with passive exhaust port, ensure gas pressure safety
> With high quality thermocouple, ensure accurate temperature control and long service time
Technical Specifications:
| Model | WMF-02 | |
| Chamber volume (L) | 2 | |
| Heating | Temperature range (℃) | RT+15~1100 |
| Temperature stability (℃) | ±1 | |
| Heating | Heat on three sides | |
| Temperature control | PID | |
| Heating capacity (KW) | 1.5 | |
| Program | Integrated temperature program, 10×30 steps | |
| Safety device | Overheat, Overload and leakage protection, Self-diagnosis, with password protection | |
| Temperature curve | Display the temperature curve in real-time | |
| Communication interface | RS232, RS485, RJ45, USB-A for data export | |
| Power supply | Aviation connector of the power supply, AC220, 50/60Hz | |
| Dimensions (W×D×H mm) | 445×460×570 | |
| Chamber dimensions(W×D×H mm) | 120×200×80 | |
| Weight (KG) | 62 | |
