Vertical Laminar Air Flow SH-HD-1500V Incredible | SH Scientific Korea
- Excellent laminar flow formation
- Adjustable fan motor speed control (10 stages)
- Detachable for upper workstation and lower base stand
- Alarm function for filter replacement timing for convenient maintenance
- Excellent mobility and work ability
- Excellent space efficiency design
- Automatic UV lamp off function against door opening
- Safety assurance with C.E conformity
Technical Specification:
| Model | SH-HD-1500V |
| Type | Laminar Vertical Down Flow |
| Dimension Internal (WxDxH) | 1391x613x690mm 54.76×24.13×27.17″ |
| Dimension External (WxDxH) | 1496x696x1820mm 59.06×30.71×74.80″ |
| Weight | 190 kg |
| Control System | Microprocessor LCD Digital Controller |
| Main Filter | HEPA Filter 0.3㎛ 99.97% efficient filter |
| Material External | Steel Plate with Powder Heating Coated |
| Working Table | Stainless Steel |
| Illumination LED Lamp | 20W, Length 1200mm |
| Illumination UV Lamp [Automatic On/Off in door Opening/Closing] | 32W x 1EA |

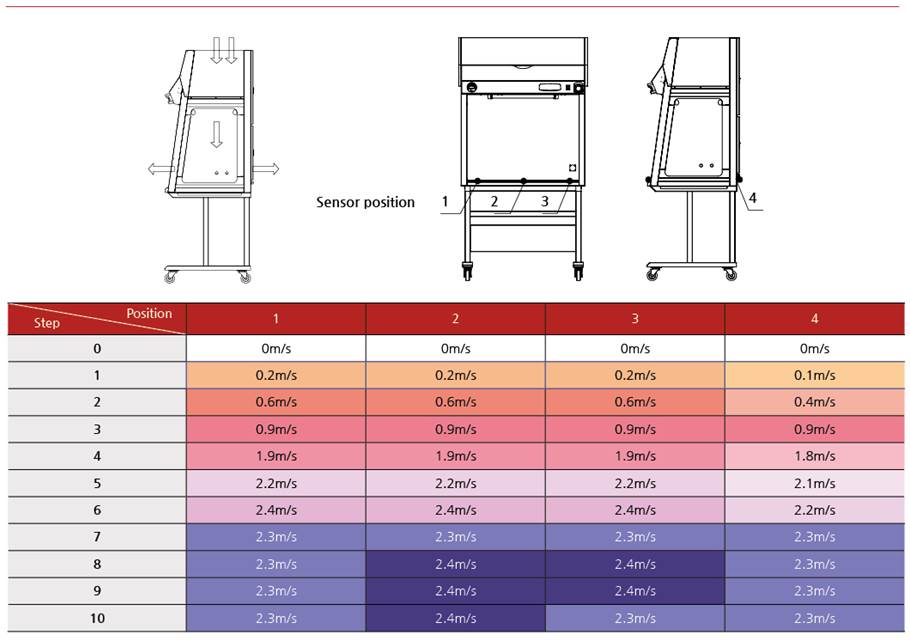

| Winding Velocity | 0.2~2.3M/Sec, 10 step adjustable |
| Purity | Below to Class 100 |
| Door Type | Tempered 5T Glass by Weight Balance |
| Electrical Requirements | 120V, 230V, 50/60Hz, 1Φ |
| Cat. No. 120V, 50Hz | HD1500V120-50 |
| Cat. No. 120V, 60Hz | HD1500V120-60 |
| Cat. No. 230V, 50Hz | HD1500V230-50 |
| Cat. No. 230V, 60Hz | HD1500V230-60 |
• Option
-Air & Gas port
• Safety Device
-Fan motor over load protection
-Automatic reset function incoming power cut
-Buzzer on and UV lamp cut off when set time arrived
-Automatic UV lamp off function against door opening
-Emergency stop button
Vertical Laminar Air Flow
-Feature
Vertical Laminar Air Flow is suitable for use within a manufacturing area, laboratory or clean room. This unit protects sensitive samples and processes from airborne particulate.
Only extreme air passing down over the process is ensured through the HEPA filtered unidirectional down flow. This method guarantees that air will be free of any particles and that any particles generated form the process will be pushed away, maintaining it contamination free area.
– Excellent laminar flow formation
– Alarm function for filter replacement timing.
– Detachable for upper workstaion and lower base stand
– Maximized workstation space
– Easy and convenient replacement of consumables
– Auxiliary utilities to support operation
– Automatic UV lamp off when door opening
– Emergency stop button for safety
