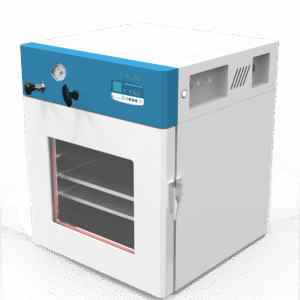

Vacuum Oven SH-VDO-30NG | SH Scientific Korea
– Separated vacuum port and vent port
– Du-aluminium Shelves(Excellent heat conductivity)
– Internal observation is possible through View Window
– Excellent temperature uniformity and accuracy
– Stainless Steel Internal Chamber with shelves
– Safety assurance with C.E conformity
Technical Specification:
| Model | SH-VDO-30NG |
| Temp Range | Ambient +5℃ to 250℃ (Ambient +9℉ to 482℉) |
| Time Range | 00.00 to 99HR 59MIN (MIN SEC) Selectable Digital Counter Timer |
| Vacuum Resistance | 0 to 76 cmHg (0 to 0.1MPa) |
| Heating Type | Hot Air Jacketed |
| Temp&Time controller | Microprocess PID Membrane Touch Digital controller |
| LED Lamp | DC 24V, 1.2W, LED bar, Waterproof, Cool White |
| Heater Capacity | 990 W |
| Dimension Internal (W×D×H) | 300×300×300mm 11.81×11.81×11.81″ |
| Dimension External (W×D×H) | 605x550x770mm 23.81×21.65×30.31” |
| Weight | 69 kg |
| Capacity | 27 L |
| Material Internal | Stainless Steel |
| Material External | Steel Plate With Powder Heating Coated |
| Materal Packing | Silicon Rubber Packing |
| View Window | Tempered Glass |
| Aluminium Shelves | 2 Supplied (4 Maximum) |
| Electrical Requirements 120V ,50/60Hz, 1Φ | 8.3 A |
| Cat. No. | VDO30NG120 |
| Electrical Requirements 230V,50/60Hz, 1Φ | 4.3 A |
| Cat. No. | VDO30NG230 |
- Option
-Programmable controller (30NG, 70NG)
-RS-485 interface (30NG, 70NG)
-RS-232C interface (30NG, 70NG)
- Safety Device
-Over temp controller
-Automatic reset function incoming power cut
-Buzzer on when set time arrived
-Electric leakage breaker
Vacuum Drying Oven
-Feature
A Vacuum Oven is used for drying at low temperatures by lowering the pressure. In addition, this unit dries samples without causing residues, scaling, or oxidation. Thus, this equipment widely used in laboratories and other related industries.

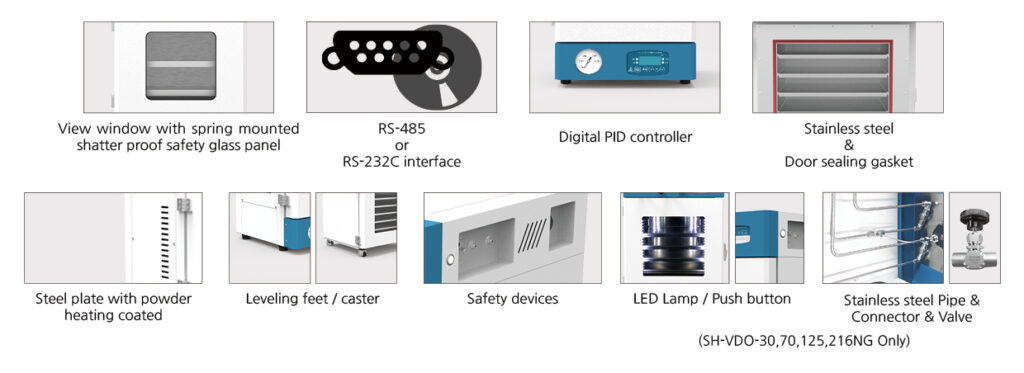

– View window with spring mounted shatter proof safety glass panel
– RS-485 or RS-232C interface
– Digital PID controller
– Stainless steel & Door sealing gasket
– Steel plate with powder heating coated
– Leveling feet / caster
– Safety devices
– LED Lamp & Switch
Check out our other products in this series…Vacuum Oven SH-VDO-70NG
