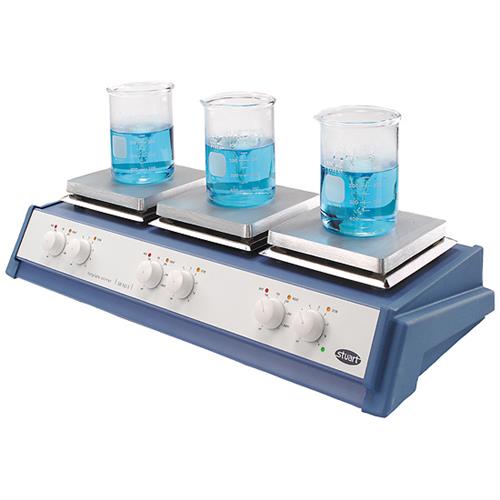

Three Position Stirring Hotplate SHP-200-MP | Stuart UK
Description
- Powerful magnets for strong magnetic coupling and stirring capacity
- Easily accommodate a 2-L beaker in each position
- The aluminum/silicon alloy top plate offers even plate temperature
- A flashing Hot warning light indicates a temperature above 50°C
Three independently controlled position units only require one power source. Run three separate tests at the same time or run multiple samples under the same conditions.
Technical Specifications:
| Top Plate Material | Aluminum |
| Includes | (3) 25 mm PTFE-Coated Stir Bars |
| Stirring Features | 3 Independent heating/stirring positions in a footprint only 600 x 270 mm, Easily accommodates 3 x 2 liter beakers |
| Controller Type | Analog |
| Sole Features | Unit only requires one power point and is ideal for quality control applications where multiple samples require simultaneous heating and stirring, under the same conditions |
| Height (Metric) | 110 mm |
| Height (English) | 4.3 in. |
| Width (Metric) | 600 mm |
| Wattage | 2250 W |
| Weight (Metric) | 11 kg |
| Shape | Square |
| Max. Container Size | 15 L |
| Voltage | 230 V |
| Safety Features | Separate Hot warning lights for each plate |
| Electrical Requirements | 230 V, 50 Hz, 2250 W |
| Model | SB162-3 |
| Size | 160 x 160 mm |
| Temperature (Metric) | Ambient to 325°C |
| Frequency | 50 Hz |
| Width (English) | 23.6 in. |
| Weight (English) | 24.3 lb. |
| Type | Stirring Hotplate |
| No. of Positions | 3 |
| Stirring Range | 100 to 1500 rpm |
