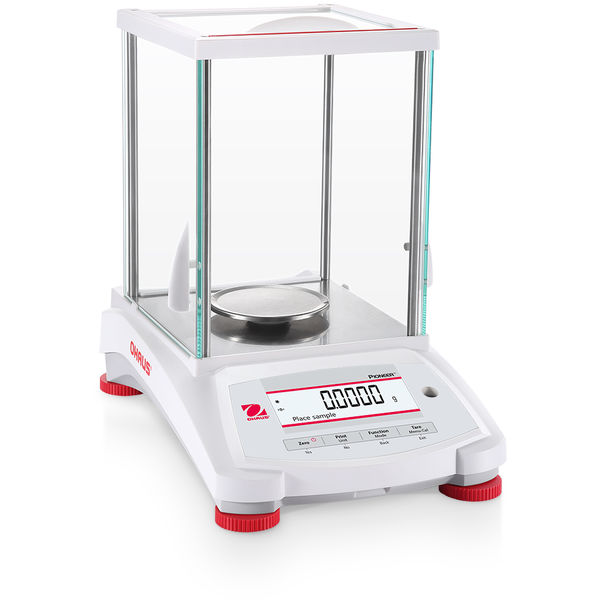

Laboratory Analytical Balance (4 Digit)
PX224/E Analytical Balance 220g | Ohaus USA
Overview

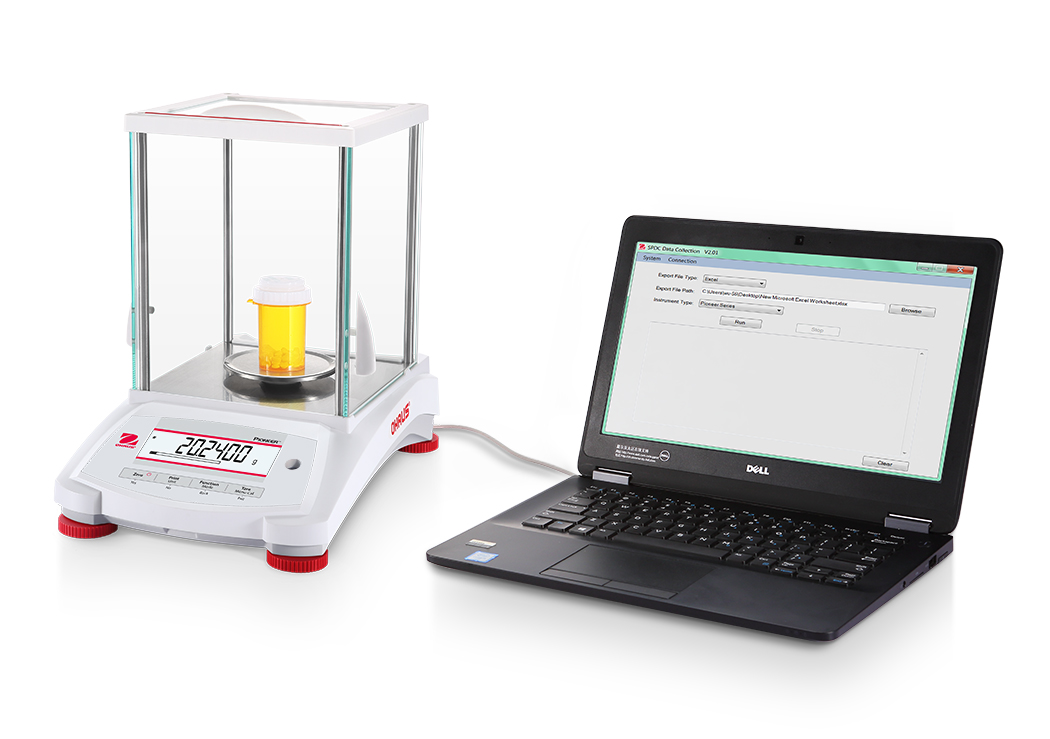

The Pioneer PX combines essential weighing functionality with competitive performance, offering high accuracy and repeatability for applications in laboratory, industrial, and education settings. The PX is affordably priced, and intuitively designed for intelligent operation with a second-line display for additional information, and USB and RS232 connectivity for easy communication.
- Applications: Basic Weighing, Parts Counting, Percent Weighing, Animal Weighing, Density Determination, Formulation
- Display: Backlit Liquid Crystal Display (LCD); Second line display for additional information or guidance (dot matrix)
- Operation: AC adapter (included)
- Communication: RS232 and USB device (included); GLP/GMP data output with real-time clock
- Construction: Metal base, plastic top housing, removable stainless steel pan, glass draft shield, integrated weigh-below-hook, security bracket, calibration lock, and in-use cover
- Design Features: User-selectable environmental filters and brightness settings, auto-tare, auto-dim, user-selectable span calibration points, software lockout, and reset menu, user-selectable communication settings and data print options, user-definable project and user IDs, software overload/underload indicator, stability indicator, four operating languages
Technical Specifications:
| Maximum Capacity | 220 g |
| Readability | 0.1 mg |
| Pan Size | 90 mm |
| Internal Calibration | Not Applicable |
| Draftshield | Included |
| Auto Door | Not Applicable |
| Auxiliary Display Model | Available as an Accessory |
| Battery Life | Not Applicable |
| Built-in Ionizer | No |
| Communication | USB;Â RS232 |
| Dimensions | 321 mm x 309 mm x 209 mm (LxHxW) |
| Display | 2-Line LCD with Backlight |
| In-Use Cover | Included |
| Legal for Trade | No |
| Linearity ± | 0.0002 g |
| Minimum Weight (USP, 0.1%, typical) | 200 mg |
| Net Weight | 10 lb (4.5 kg) |
| Pan Construction | Stainless Steel |
| Power | AC Adapter (Included) |
| Repeatability, typical | 0.0001 g |
| Stabilization Time | 3 s |
| Tare Range | To capacity by subtraction |
| Units of Measurement | Singapore Tael;Â Pennyweight;Â Ounce Troy;Â Kilogram;Â Grain;Â Tical;Â Custom;Â Milligram;Â Newton;Â Momme;Â Taiwan Tael;Â Baht;Â Gram;Â Hong Kong Tael;Â Pound;Â Tola;Â Mesghal;Â Ounce;Â Carat |
| Working Environment | operability guaranteed between 41°F and 104°F; 50°F – 86°F, 80%RH, non-condensing (operability guaranteed between 5°C and 40°C; 10°C – 30°C, 80%RH, non-condensing) |
