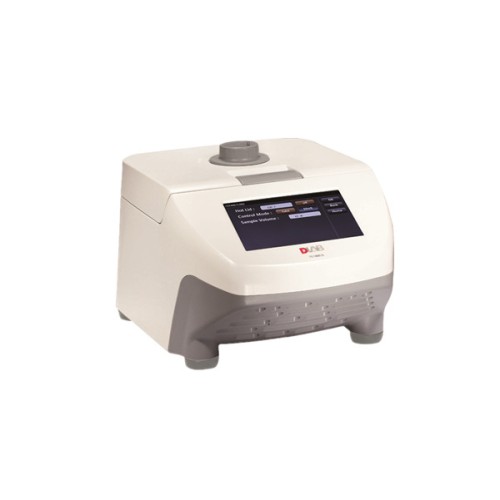

TC1000-S PCR Thermal Cycler Standard | DLAB USA

PCR Thermal Cycler Standard

Key Features:

• High performance Peltier and independent heating segments improving temperature control
• Auxiliary heating mechanism diminishes the “edge effect” and enhance the temperature uniformity
• Wide touchdown PCR temperature range (-9.9°C~+9.9°C) and Long PCR time range (-9min 59s~+9min 59s)
• Gradient temperature setting optimizes temperature easily in the single run
• Color touch screen with user friendly interface helps to edit programs easily
• Wide options of consumables: common PCR tubes, 8-well PCR strips and 96-well PCR plates can be used
• File customization, multi-file storage
• Power failure protection function, automatic program recovery
• Hot lid auto-off function: If module temperature is lower than 30 °C, the hot lid function will automatically turn off
• Elegant design, excellent precision and accurate, reproducible results and precise PCR optimization
• State of the art electronics, precision peltier device and flexible user interface.
• The TC1000G is an essential laboratory instrument for molecular biology with applications such as sequencing, gene cloning, gene
• expression,mutagensis, and it is also used in areas such as drug discovery, agriculture, food industry, etc.

Technical Specifications:

Sample Capacity: 96×0.2mL PCR tube | 12×0.2mL PCR-8 strips | 0.2mL 96 PCR Microplate
Heating Temperature Range: 4-105℃
Lid Temperature Range: 30-110℃
Temperature Display Accuracy: ±0.1℃
Temperature Control Accuracy: ±0.3℃
Temperature uniformity: <0.3℃
Max. Heating/Cooling Rate: 5℃/Sec
Gradient Temperature Setting Range –
Gradient Range –
Adapter block material: Aluminum
Display” 7″ LCD 800×480
Input: Touch panel
User defined file system: Max.30 segments 99 cycles, and storage for over 200 files.
Power off protection: Yes
Voltage,Frequency: 100-120V/200-240V,50/60Hz
Dimension[WxDxH]: 280 x 370 x 250mm
Weight: 11kg
