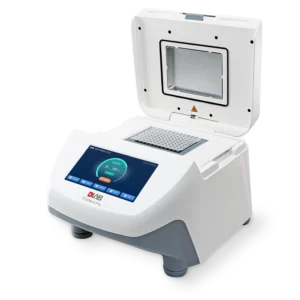

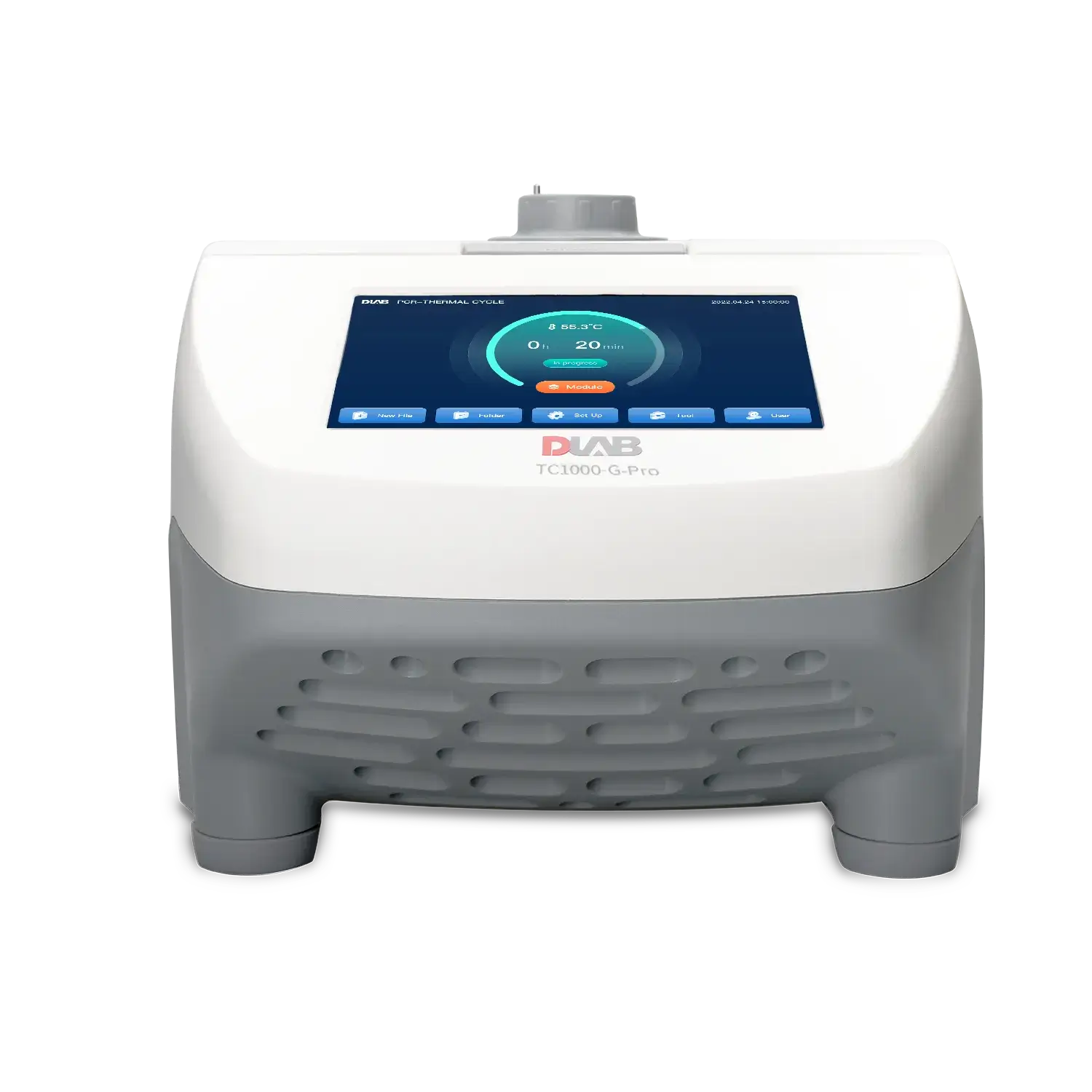

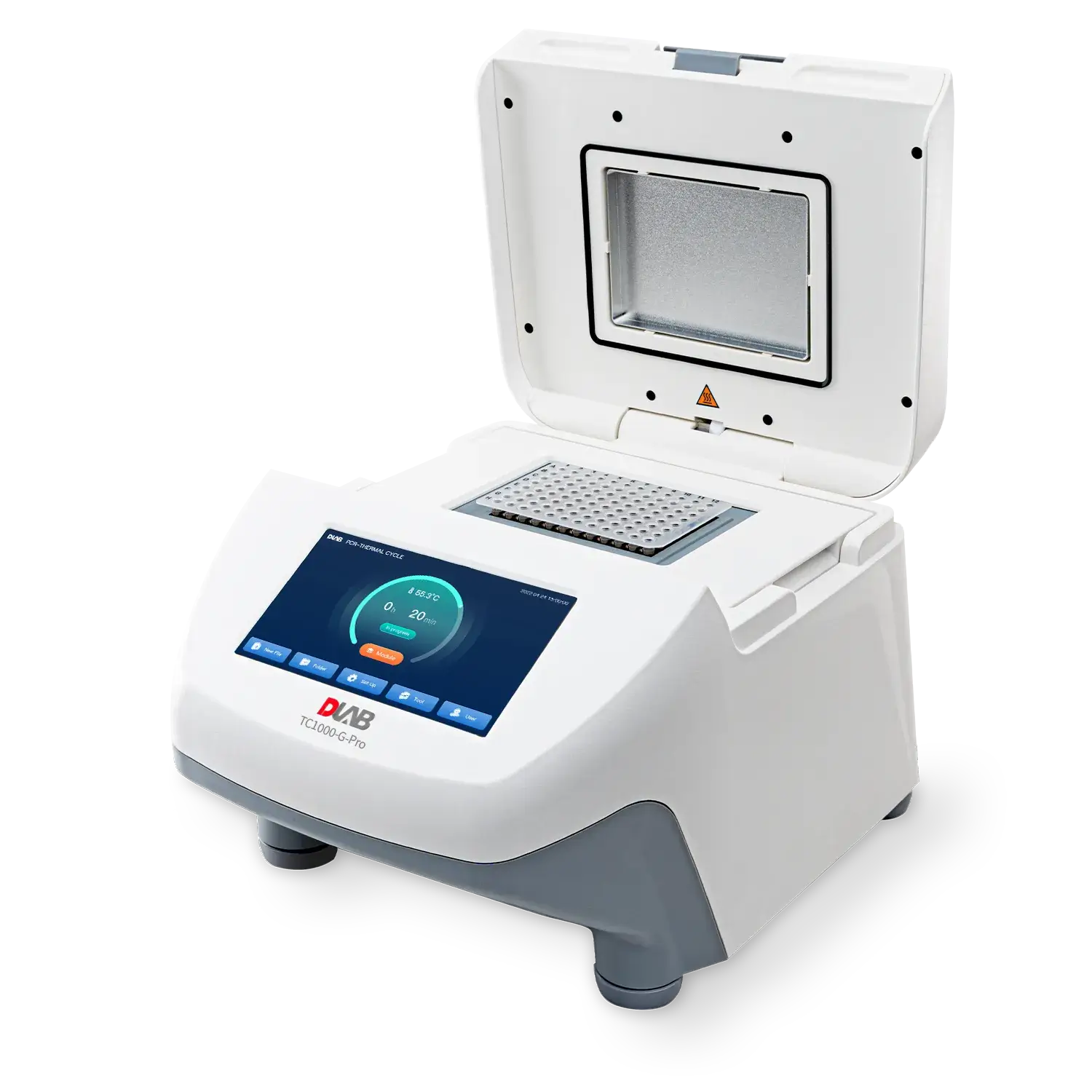

TC1000-G-PRO PCR Thermal Cycler Gradient | DLAB USA

PCR Thermal Cycler Standard

Key Features:

• Elegant design, excellent precision and accurate, reproducible results and precise PCR optimization；
• New UI user interface，easy to use graphical menu，color touch screen with user friendly interface helps to edit programs easily
• High performance with advanced thermal gradient technology，high performance Peltier and independent heating segments improving temperature control；
• Auxiliary heating mechanism diminishes the “edge effect” and enhance the temperature uniformity，gradient temperature setting optimizes temperature easily in the single run；
• Real-time display of program progress and time remaining，set up user security accounts and passwords depending on customer needs；
• One-click fast incubation function for denaturation、Enzyme digestion/enzyme linkage、required for ELISA etc.；
• Power failure protection function, automatic program recovery，ensure safe operation of the entire amplification process；
• Built-in WIFI module，connecting via LAN with a PC host computer，simultaneous control of multiple PCR instruments with one computer；
• Hot lid temperature and hot lid operating mode can be set，meeting different experimental needs，if module temperature is lower than 30 °C, the hot lid function will automatically turn off；
• USB interface, support for saving/retrieving PCR data on U disk, support for updating software on U disk and LAN, customisable programs，file customization, multi-file storage；
• Wide touchdown PCR temperature range (-9.9°C~+9.9°C) and Long PCR time range (-9min 59s~+9min 59s)；
• Wide options of consumables: common PCR tubes, 8-well PCR strips and 96-well PCR plates can be used；

Technical Specifications:

Sample Capacity: 96×0.2mL PCR tube | 12×0.2mL PCR-8 strips | 0.2mL 96 PCR Microplate
Heating Temperature Range: 0-105℃
Lid Temperature Range: 30-115℃
Temperature Display Accuracy: 0.1℃
Temperature Control Accuracy: ±0.1℃
Temperature uniformity: ±0.2℃ @35-72℃
Max. Heating/Cooling Rate: 5℃/Sec
Gradient Temperature Setting Range: 30-105℃
Gradient Range: 1-42℃，Turn off gradient on input 0
Adapter block material: Aluminum
Display: 7″ LCD 1024×600
Input: Touch panel
User defined file system: Max. 30 steps in a single program, 99 cycles
Power off protection: Yes
Voltage,Frequency: 100~120V/200~240V，50/60Hz 600W
Dimension[WxDxH]: 280 x 370 x 250mm
Weight: 9.5kg
