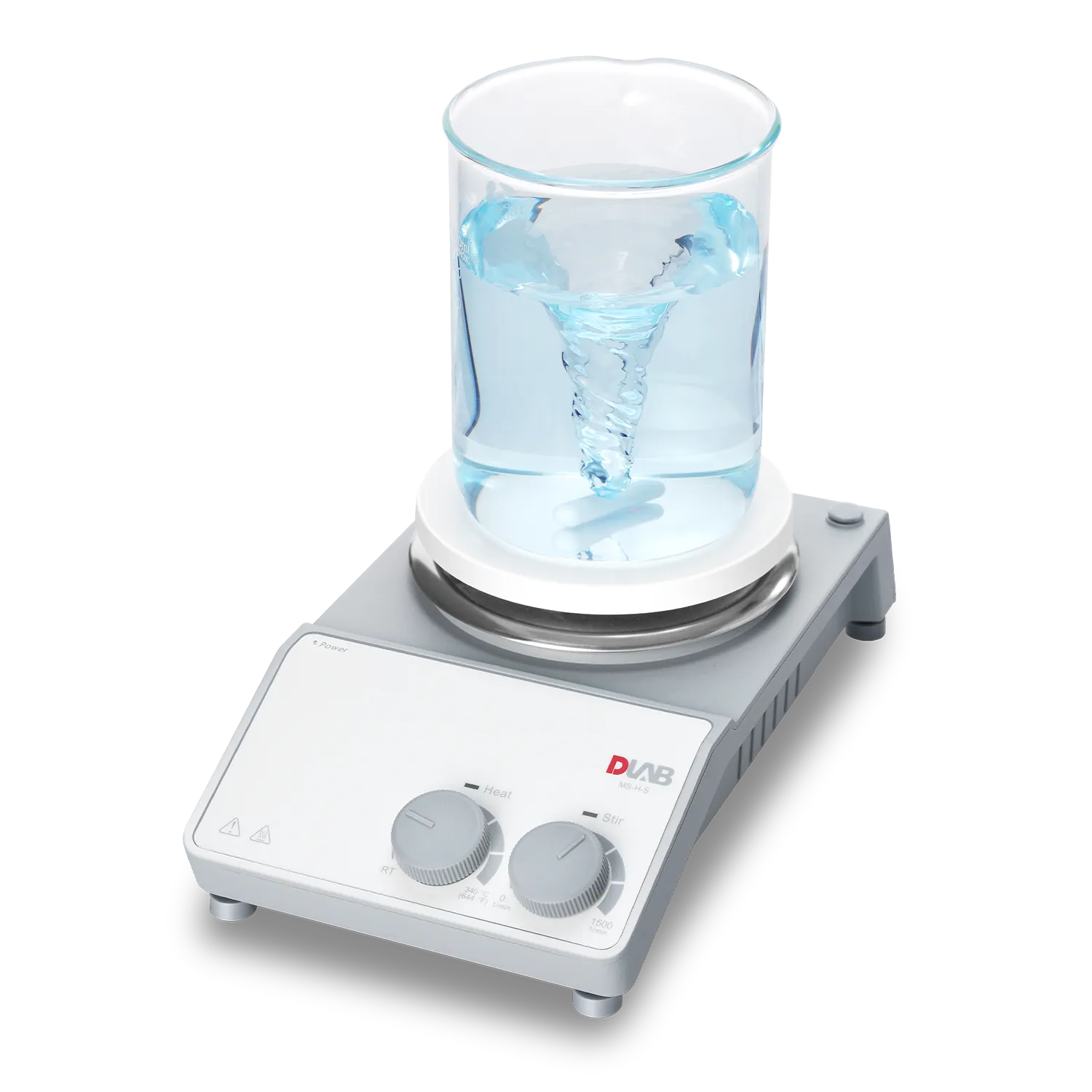

Hotplate with Magnetic Stirrer
Key Features:
- Brushless DC motor is maintenance free and explosion-proof
- Digital temperature control up to 340°C
- Digital speed control up to 1500rpm
- Maximum stirring quantity of H2O is 20L
- Safety circuits provide overheating protection
- “HOT” warning flashes if plate temperature is above 50°C even when hotplate is turned off
- Work plate with ceramic coating provides good chemical-resistantperformance
- Wide variety of accessories available to choose
Technical Specifications:
Work plate Dimension: Ø135mm（5 inch）
Work plate material:stainless steel cover with ceramic coating
Max. stirring quantity [H2O]:20L
Speed range: 0-1500rpm
Speed display: Scale
Temperature display: Scale
Heating temperature range: Room Temp.-340℃
Temperature control accuracy –
Temperature display accuracy –
External temperature sensor –
“Hot” warning –
Overheating temperature protection: 420℃
Motor type: Brushless DC motor
Stirring positions: 1
Max. magnetic bar length: 80mm
Data connector: –
Timer function: –
Protection class: IP21
Motor rating input: 18W
Motor rating output: 10W
Power: 530W
Heating output: 500W
Voltage,Frequency: 100-120V/200-240V，50/60Hz
Dimension [WxDxH]: 160 x 280 x 100mm
Weight: 2.8kg
Permissible ambient temperature: 5-40℃
Permissible ambient humidity: 80% RH
