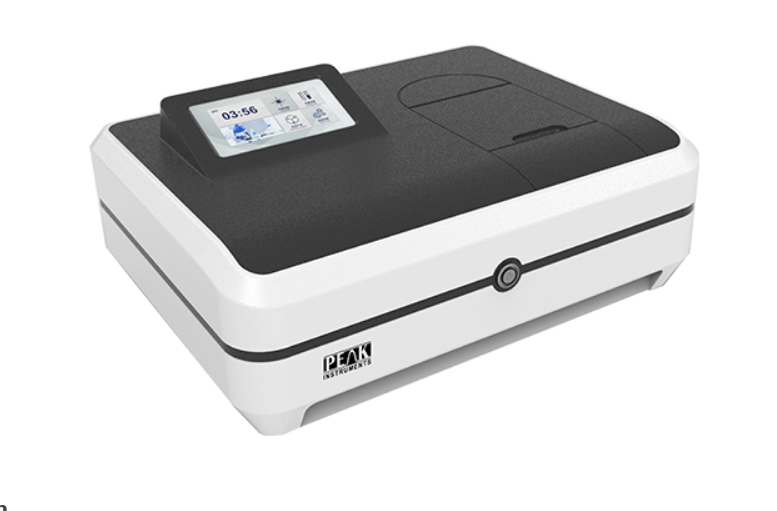

E-3000UV Single Beam Spectrophotometer

The E-3000UV Single Beam Spectrophotometer from PEAK Instruments is a compact single-beam UV-Vis spectrophotometer designed for routine photometric and quantitative measurements in laboratory environments. With a broad 190–1100 nm wavelength range, the instrument supports measurements across ultraviolet and visible wavelengths.

The E-3000UV combines microcomputer technology, electronic control and high-performance optical components with a 24-digit AD converter. Its 7-inch high-resolution touchscreen provides a convenient user interface, while the high-efficiency 1200 lines/mm holographic grating and C-T monochromator provide the optical foundation for spectrophotometric analysis.

The instrument is suitable for laboratories performing routine absorbance, transmittance and quantitative measurements. Optional PC software can extend its capabilities to wavelength scanning, multi-wavelength measurements, kinetics and DNA/protein testing.

Key Features and Benefits

E-3000UV Single Beam Spectrophotometer Technical Specifications

E-3000UV Single Beam Spectrophotometer Measurement Functions

The E-3000UV is designed for routine photometric and quantitative measurements. Its standard functions can be extended with optional PC software.

Depending on the selected configuration and software, available functions include:

• Photometric measurements
• Quantitative analysis
• Wavelength scanning
• Multi-wavelength measurements
• Kinetic measurements
• DNA testing
• Protein testing

The optional software therefore allows the E-3000UV to be used for applications beyond routine standalone photometry.

Optical System and Light Source

The E-3000UV uses a single-beam optical configuration with a high-efficiency holographic grating of 1200 lines/mm and a C-T monochromator. The documented light source is a combination of tungsten and deuterium lamps, providing illumination across the instrument’s UV-Vis operating range.

Some product documentation also describes the tungsten-halogen and deuterium lamps as long-life sources, with lamp operating time management available on certain versions/configurations.

Data Storage and Connectivity

The E-3000UV includes USB connectivity for data transfer. Available documentation states that measurement data can be transferred in Excel format, while internal memory can store up to 2000 data sets or 95 curves.

An optional Bluetooth module can be used for printer connectivity. Optional PC software provides additional analytical and data-processing functions, including scanning, multi-wavelength analysis, kinetics and DNA/protein testing.

Optional Accessories

Available documentation lists several optional accessories for the E-3000UV, including:

• Automatic 8-position 1 cm cell holder
• Automatic 5-position 5 cm long-path cell holder
• Manual 4-position 5 cm cell holder
• Manual 4-position 10 cm cell holder
• Tube rack
• Film holder
• Bluetooth module
• PC software

These accessories can expand the instrument’s flexibility for different sample and measurement requirements.

Applications of the E-3000UV Single Beam Spectrophotometer

The E-3000UV can be used for routine UV-Vis laboratory analysis in areas such as:

• Chemical analysis
• Pharmaceutical laboratory testing
• Academic and university laboratories
• Research and development
• Quality control laboratories
• Environmental analysis
• Food and beverage testing
• Biological and biochemical analysis

Its 190–1100 nm wavelength range and optional analytical software make it suitable for laboratories that need a versatile instrument for routine photometric and quantitative measurements.

FAQ:-

What is the E-3000UV Single Beam Spectrophotometer?

The E-3000UV is a single-beam UV-Vis spectrophotometer from PEAK Instruments designed for photometric and quantitative laboratory measurements.

What is the wavelength range of the E-3000UV?

The E-3000UV has a 190–1100 nm wavelength range.

Is the E-3000UV a single-beam or double-beam instrument?

The E-3000UV is documented as a single-beam UV-Vis spectrophotometer.

What is the spectral bandwidth of the E-3000UV?

The documented spectral bandwidth/slit width is 2 nm.

Does the E-3000UV have a touchscreen?

Yes. It has a 7-inch touchscreen with 1024 × 768 resolution.

Can the E-3000UV perform scanning and kinetics?

Yes, these are available through the optional PC software, along with multi-wavelength and DNA/protein testing functions
