Laboratory Homogenizer

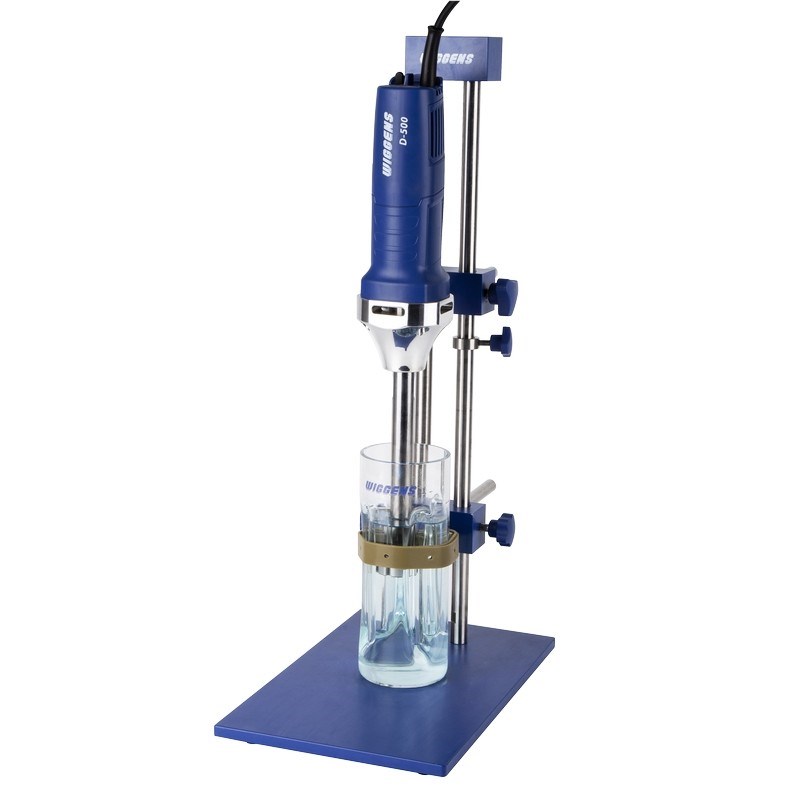

D-500 High Speed Homogenizer | WIGGENS Germany
Description
Used for homogenizing, emulsifying or suspending. There is a broad spectrum of dispersing tools to choose from.
Features
> Continuosly adjustable speeds for better results
> Light-weighted and small-dimensioned for better handling
> Triple safety of the drive (overload protection. Smooth start – against jerky work, safety switch)
> High quality dispersing tools as standard for better resistance to corrosion (SS 316 L steel)
> Quick-change system of the dispersing tools for a short changing time between preparations
> Viscosities up to 10,000 cps
> One shaft size
> High quality lab dispersing unit, at a competitive price!
> D-500pro can maintain constant motor speed by feedback control even under changing loads
Technical Specifications:
| Model | D-500 |
| Speed setting | Knob |
| Speed display | Scale |
| Process Range H2O(mL) | 10~40,000mL |
| Speed with Zero-Load (rpm) | 10,000~30,000 rpm |
| Applicable aggregates | Ø4~Ø23 mm |
| Noise Level (dB) | 72 dB (30,000 rpm) |
| Motor | AC |
| Input / Output Power (W) | 500 W |
| Supply voltage (V) | 220V/50~60Hz |
| Relative humidity (max.) | 80% RH |
| Operating temperature | 0~40℃ |
| IP Code | IP20 |
| Dimensions (W x L x H in mm) | Drive:70×70×255 mm |
| Weight (kg) | Drive:1.3 kg |
Recommend purchasing the set. The standard set includes: homogenizer, dispersing shaft, stand.
