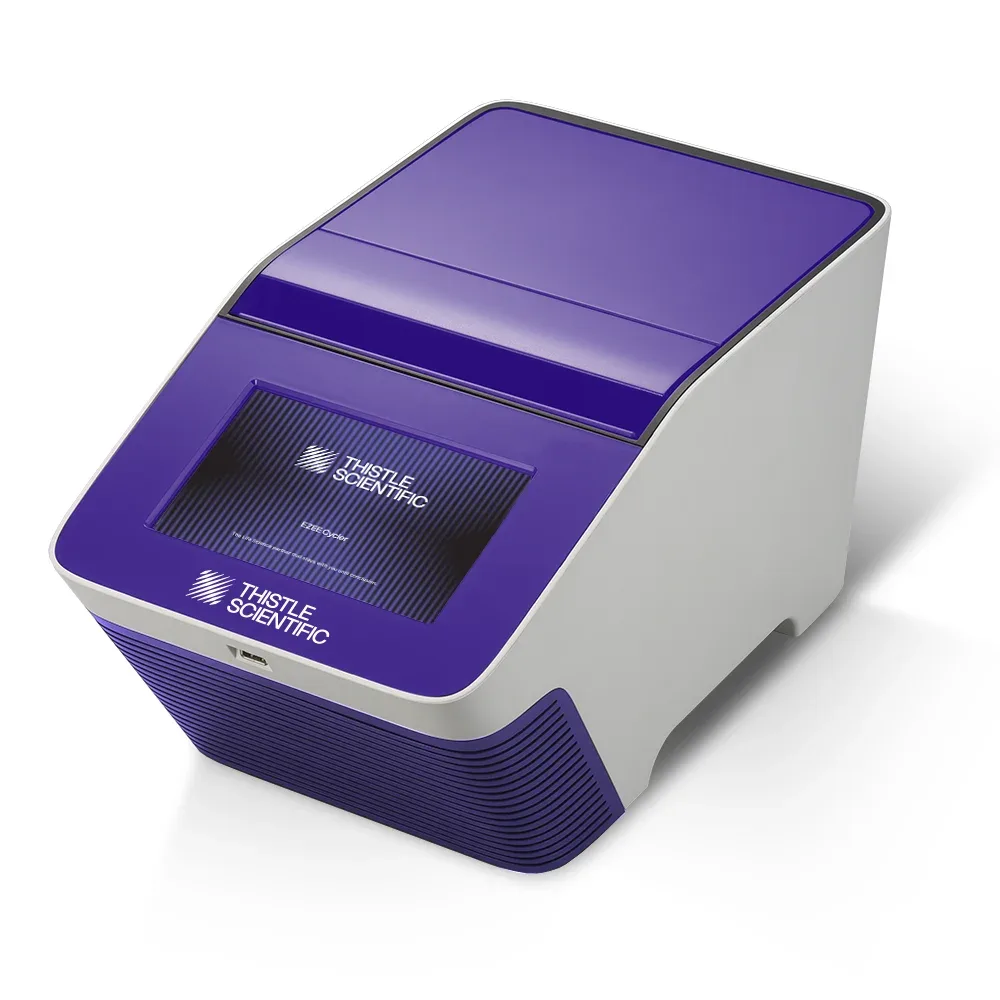

EZEEcycler PRO Thermal Cycler | Precision PCR System

The EZEEcycler PRO Thermal Cycler is a precision 96-well PCR system designed to provide accurate temperature control, flexible programming, and efficient PCR optimization for modern molecular biology laboratories. Its responsive 7-inch capacitive touchscreen and intuitive graphical interface make routine PCR setup and operation straightforward, even when working with laboratory gloves.

The system combines a 96-well gradient block with adjustable ramp-rate control and a wide temperature range, giving researchers greater flexibility when developing and optimizing PCR protocols. The gradient function can provide temperature differences of up to 30°C across the block, allowing multiple conditions to be evaluated during a single PCR run.

Key Features and Benefits

EZEEcycler PRO Thermal Cycler for Precise PCR

The EZEEcycler PRO provides the flexibility required for demanding PCR workflows while maintaining accurate and consistent thermal performance.

Key benefits include:

• 96-well gradient block for efficient processing of PCR samples.
• 7-inch capacitive touchscreen with an intuitive graphical interface.
• Adjustable ramp rate from 0.1 to 5.5°C/sec for optimized PCR conditions.
• Block temperature range of 4°C to 100°C for a wide range of molecular biology protocols.
• Gradient temperature range of 30°C to 100°C with a maximum gradient span of 30°C.
• Temperature accuracy and uniformity of ±0.3°C.
• Adjustable heated lid from 35°C to 120°C, or the lid can be switched off.
• More than 4,000 stored programs for convenient protocol management.
• USB Type-A port for transferring protocols and exporting experimental data.
• Password-protected user folders for controlled protocol management.
• Built-in tools including a Tm calculator, copy-number converter, and master-mix preparation wizard.

The adjustable ramp rate is particularly useful when PCR protocols require fine control of heating and cooling performance. Gradient optimization also allows researchers to determine suitable experimental temperatures efficiently.

Technical Specifications:

The 96-well block is compatible with regular-profile and low-profile 0.2 mL PCR tubes as well as non-skirted, semi-skirted, and full-skirted 96-well PCR plates.

Why Choose the EZEEcycler PRO?

The EZEEcycler PRO Thermal Cycler is suitable for laboratories that require reliable PCR temperature control together with flexible optimization capabilities.

Its combination of gradient functionality, adjustable ramp rates, touchscreen operation, large protocol storage, and USB data transfer makes it suitable for both routine PCR and method-development workflows.

The built-in software tools can also simplify common molecular biology tasks. Researchers can use the Tm calculator, copy-number converter, and master-mix preparation wizard directly within the instrument’s software environment.

Who Is the EZEEcycler PRO For?

The EZEEcycler PRO can be considered for:

• Molecular biology laboratories
• Biotechnology laboratories
• Pharmaceutical research laboratories
• University and academic research laboratories
• Clinical and diagnostic research
• Genetics and genomics laboratories
• Microbiology research
• PCR method development
• Research institutes and biotechnology facilities

For laboratories processing multiple samples, the 96-well configuration provides a practical format for routine PCR experiments and optimization studies.

PCR Optimization with Gradient Temperature Control

One of the main advantages of this gradient thermal cycler is its ability to establish different temperatures across the PCR block during a single run.

The system provides a gradient temperature range of 30°C to 100°C with a maximum temperature difference of 30°C across the block. This can help researchers evaluate suitable annealing or other temperature-dependent PCR conditions without performing multiple separate experiments.

Protocol Management and Data Transfer

The EZEEcycler PRO supports extensive protocol storage, with more than 4,000 stored programs. Users can transfer additional protocols using the front USB Type-A port.

The system also supports export of run-status reports in HTML format and real-time temperature profiles in CSV format through USB flash storage.
